P10 DIP346 red color outdoor single Color Led Module with 320mm X 160mm

Brand Name : BST

Model Number : BST-OM-10-S

Certification : CE, RoHS, FCC, ISO

Place of Origin : Shenzhen, China

MOQ : negotiable

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000sqm/month

Delivery Time : 10-20 days after receive payment

Packaging Details : Carton case, Plywood case ;

Type : P10mm

Drive Method : 1/4 scan

Module size : 320X160mm

View Distance : 10-50m

weight : 0.56KG/pcs

Package : carton case

Contact Now

P10 DIP346 red color outdoor single Color Led Module with 320mm X 160mm

Quick Detail:

1. 32 × 16 dots;

2. 320 × 160 mm;

3. 1/4 scan constant voltage;

4. More than 3,500 nits;

5. 2.5 cm thickness;

6. 0.56 kg/pc.

Detail Description:

There are 16 pcs 595 driving IC;

Carton or plywood case packge provided;

5V power cable and flat cable equipped for free.

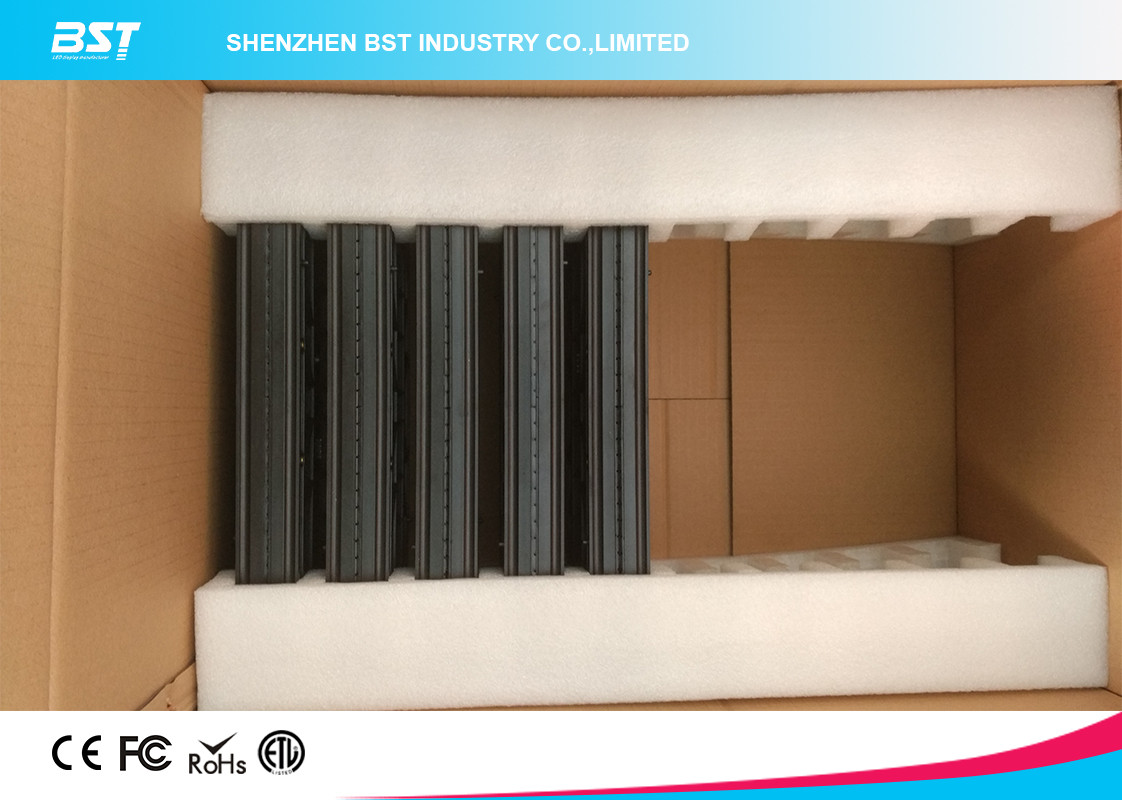

Carton box packed, EPE foam inside.

Specifications:

Name	P10
Pixel Diameter	10mm
Pixel Pitch	10mm
Density	10000dots/ m2
Screen Resolution	32x16 pixels
Show Content	Single color Words and Pictures
Thickness	≤3cm
Screen Weight	30kg/ m2
Working Voltage	220V/110V
Max. power	≤450W/ m2
consumption	≤450W/ m2
Average Consumption	100~150W/ m2
Control Method	Asynchronous / Synchronous
OS	Above WINDOWS 98 xp
Driving IC	HC595
LED driving Method	1/4 scan driving
Refresh frequency	≥180HZ
Frame frequency	≥75 frame/s
Gray scale / color	256/256 grade
Brightness	≥3500cd/ m2
Best viewing Angle	±60º
Optimum Viewing	10~60m
Distance	10~60m
Effort communicate distance	Within 120m
Working temperature	-20°C~ +60°C
RH	15%-85%
LED Universal player (MDK)
